| Product Code | Face Size Metric | Swirl Diameter |
|---|---|---|
| VSDFCV254 | 595 x 595 | 254mm |
| VSDFCV336 | 595 x 595 | 336mm |
| VSDFCV440 | 595 x 595 | 440mm |
| VSDFCV530 | 595 x 595 | 530mm |
*Lead time applies
PRODUCT INFORMATION
WITH VERY LOW SOUND POWER LEVEL FOR COMFORT ZONES, WITH FIXED AIR CONTROL BLADES

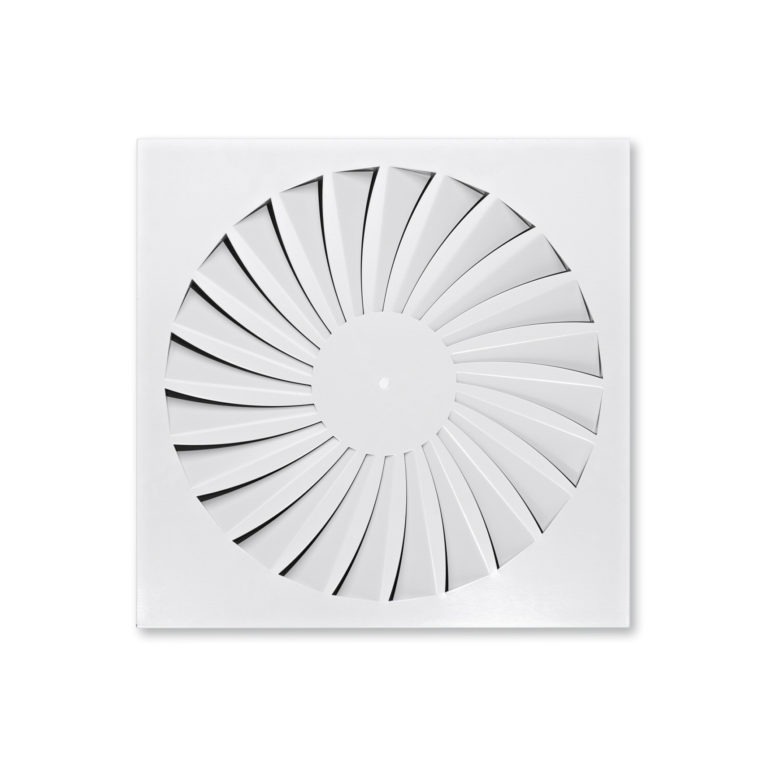

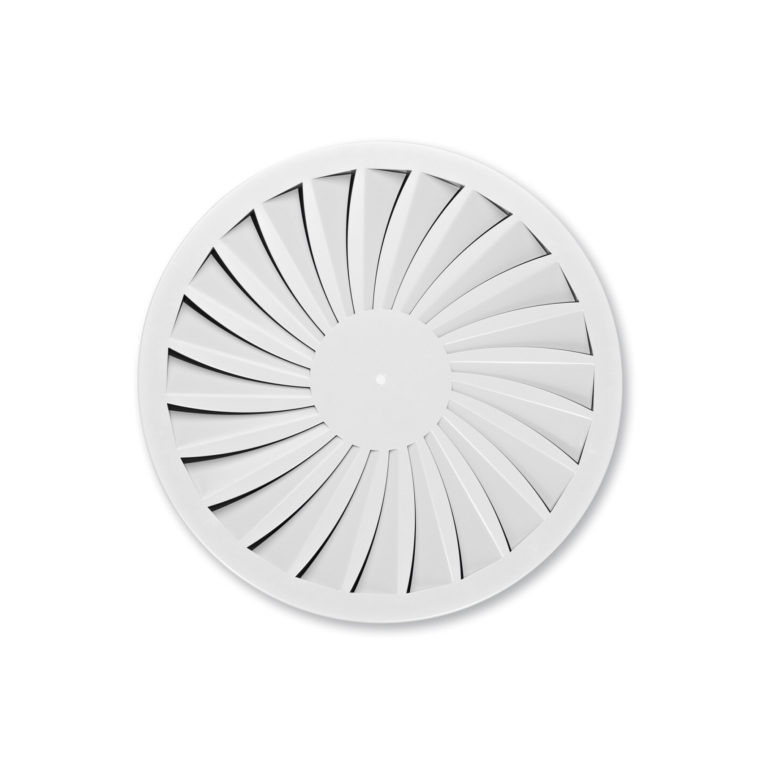

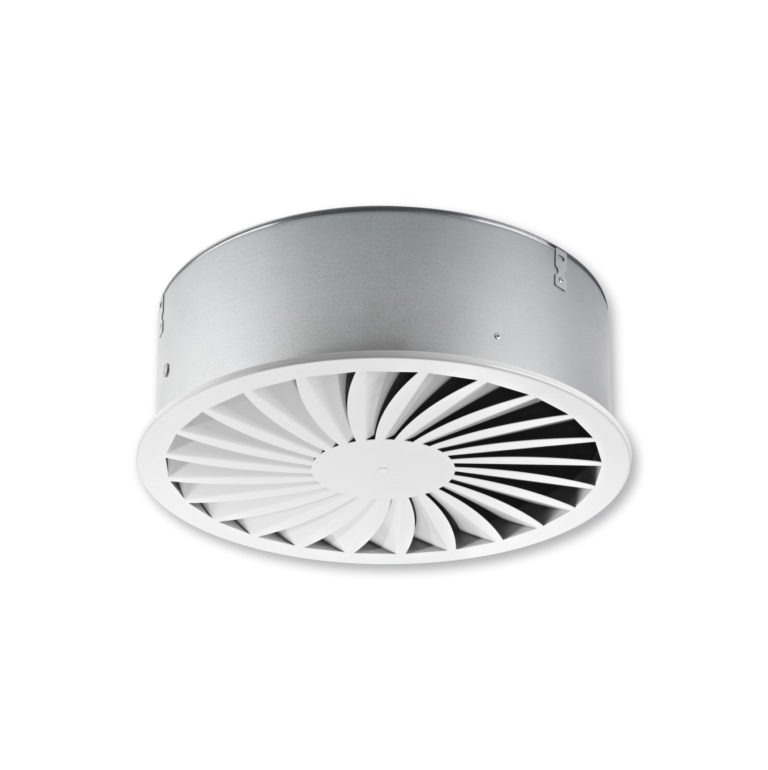

Circular and square ceiling swirl diffusers
Nominal sizes 300, 400, 500, 600, 625
Volume flow rate range 10 – 295 l/s or 36 – 1026 m³/h
Diffuser face made of galvanised sheet steel, powder-coated
For supply and extract air
For variable and constant volume flows
For all types of ceiling systems, and with an extended border also suitable for freely suspended installation
High induction results in a rapid reduction of the temperature difference and airflow velocity
Ideal for comfort zones
Optional equipment and accessories
Exposed diffuser face available in RAL CLASSIC colours
Horizontal or vertical duct connection

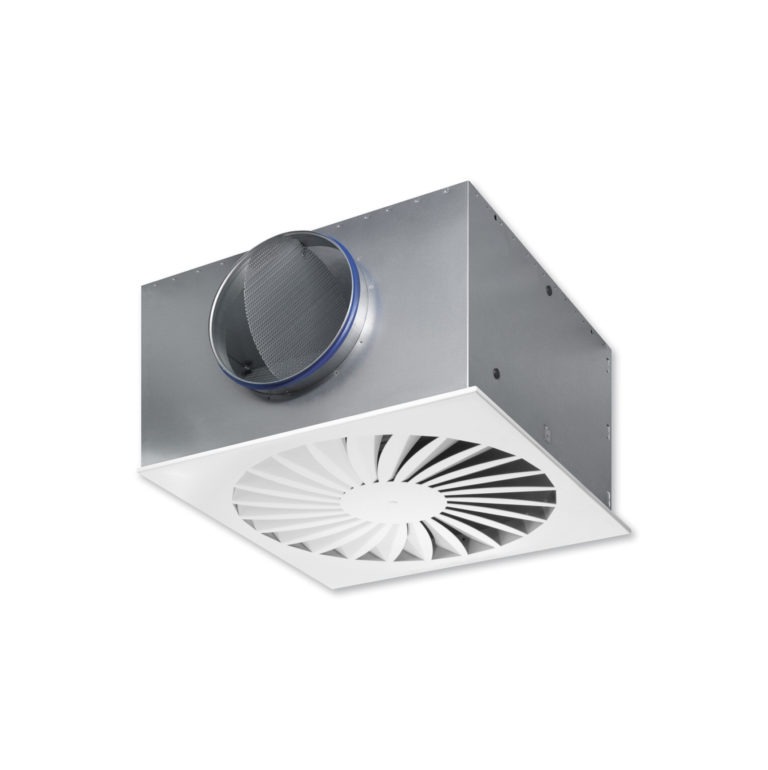

Plenum box with cord-operated damper blade and pressure tap
