| Product Code | Nom. Neck Metric |
|---|---|
| VRCB124 | 300 x 100 |
| VRCBG124 | 300 x 100 |
| VRCBG144 | 350 x 100 |
| VRCBG146 | 350 x 150 |
| VRCBG164 | 400 x 100 |
| VRCBG166 | 400 x 150 |
| VRCBG204 | 500 x 100 |
| VRCBG244 | 600 x 100 |
| VRCBG246 | 600 x 150 |
| VRCBG324 | 800 x 100 |
| VRCBG364 | 900 x 100 |
| VRCBG366 | 900 x 150 |
| VRCBG404 | 1000 x 100 |
| VRCBG406 | 1000 x 150 |
| VRCBG484 | 1200 x 100 |
| VRCBG486 | 1200 x 150 |
PRODUCT INFORMATION

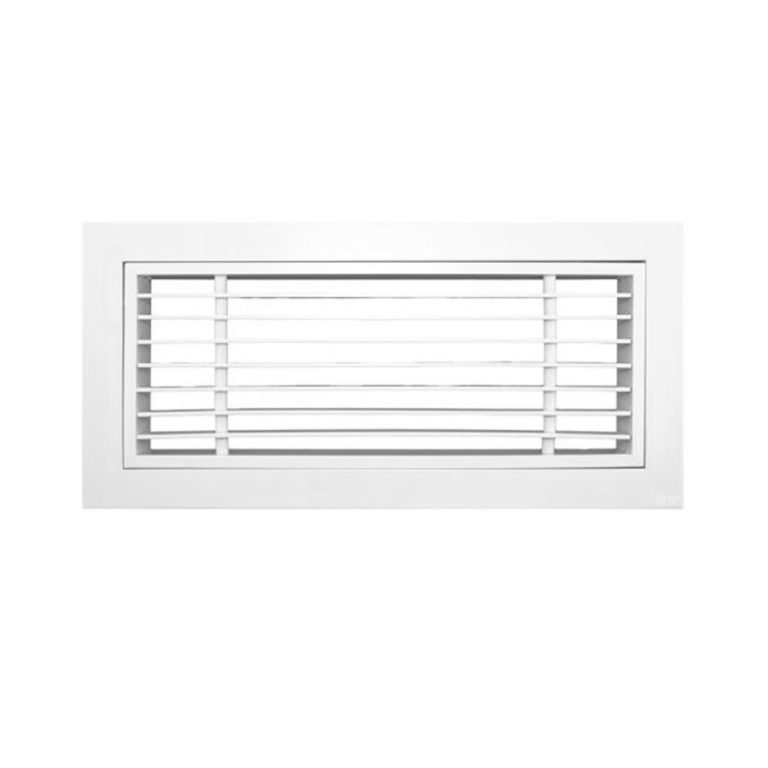

Description
For supply air applications, having a single set of fixed blades. Quick release removable core provides easy
access to rear and concealed fixing facility.
Specification

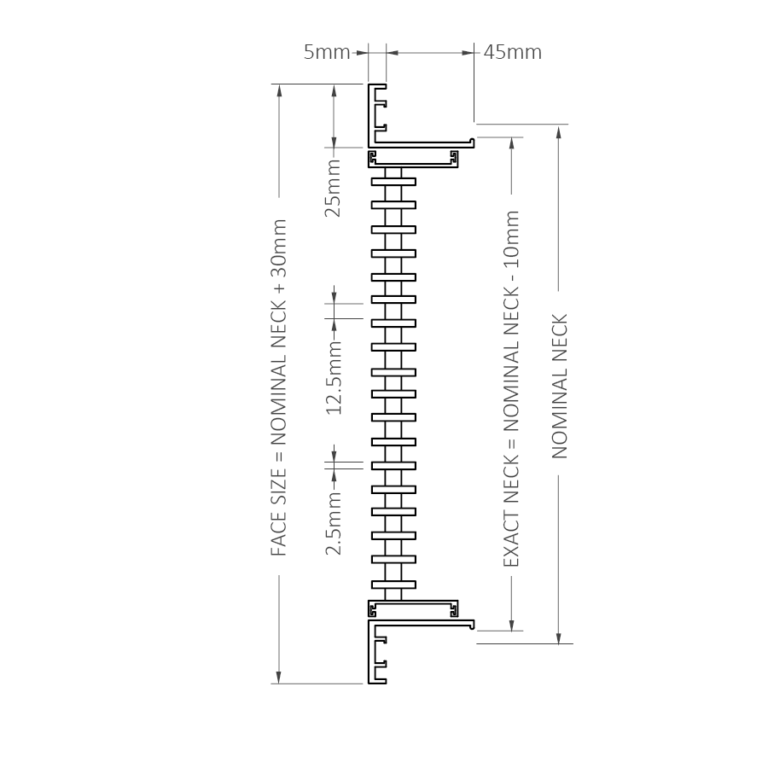

Removable Core Bar Grilles shall be Air-Grilles Supplies Model VRCBG from high quality aluminium extrusion. Blades shall be 2.5mm thick with 12.5mm pitch and 0 degree deflection. Round spacers form the mullions for support between blades. Grilles shall be a powder coat finish. Grilles shall be fitted with accessories where required by Air-Grilles Supplies.
