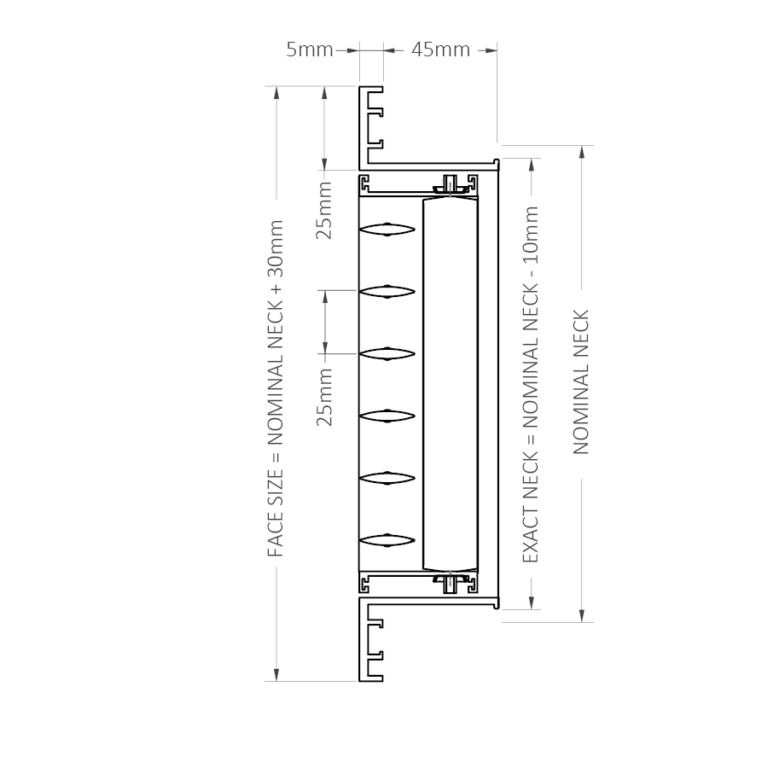

| Product Code | Nom. Neck Metric | Face | Face | |
|---|---|---|---|---|
| VRCDDR124 | 300 x 100 | 340 | 140 | 292 x 92 |
| VRCDDR144 | 350 x 100 | 390 | 140 | 342 x 92 |
| VRCDDR164 | 400 x 100 | 440 | 140 | 392 x 92 |
| VRCDDR184 | 450 x 100 | 490 | 140 | 442 x 92 |
| VRCDDR204 | 500 x 100 | 540 | 140 | 492 x 92 |
| VRCDDR244 | 600 x 100 | 640 | 140 | 592 x 92 |
| VRCDDR324 | 800 x 100 | 840 | 140 | 792 x 92 |
| VRCDDR126 | 300 x 150 | 340 | 190 | 292 x 142 |
| VRCDDR146 | 350 x 150 | 390 | 190 | 342 x 142 |
| VRCDDR166 | 400 x 150 | 440 | 190 | 392 x 142 |
| VRCDDR186 | 450 x 150 | 490 | 190 | 442 x 142 |
| VRCDDR206 | 500 x 150 | 540 | 190 | 492 x 142 |
| VRCDDR246 | 600 x 150 | 640 | 190 | 592 x 142 |
| VRCDDR450175 | 450 x 175 | 490 | 215 | 442 x 167 |
| VRCDDR500175 | 500 x 175 | 540 | 215 | 492 x 167 |
| VRCDDR600175 | 600 x 175 | 640 | 215 | 592 x 167 |
| VRCDDR128 | 300 x 200 | 340 | 240 | 292 x 192 |
| VRCDDR148 | 350 x 200 | 390 | 240 | 342 x 192 |
| VRCDDR168 | 400 x 200 | 440 | 240 | 392 x 192 |
| VRCDDR188 | 450 x 200 | 490 | 240 | 442 x 192 |
| VRCDDR208 | 500 x 200 | 540 | 240 | 492 x 192 |
| VRCDDR248 | 600 x 200 | 640 | 240 | 592 x 192 |
| VRCDDR1210 | 300 x 250 | 340 | 290 | 292 x 242 |
| VRCDDR2010 | 500 x 250 | 540 | 290 | 492 x 242 |
| VRCDDR2410 | 600 x 250 | 640 | 290 | 592 x 242 |
| VRCDDR2412 | 600 x 300 | 640 | 340 | 592 x 292 |
| *Grilles are aluminium powder coated white as standard. |
PRODUCT INFORMATION

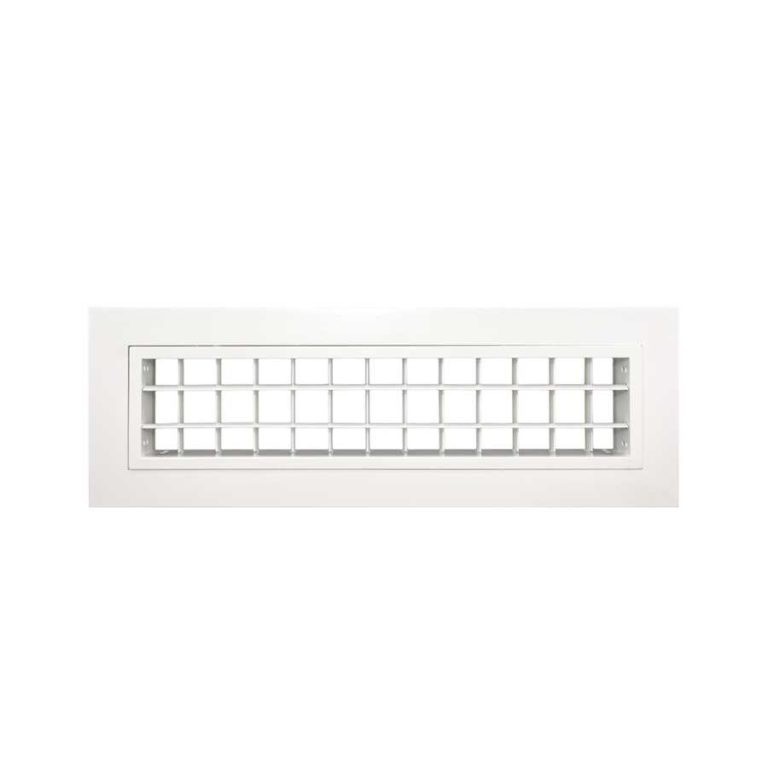

Description
For supply air, having a double set of fully adjustable aerofoil blades to give directional control of the air pattern in four directions if required. Suitable for wall and duct mounting. Quick release removable core for ease of fitting and blade setting.
Specification
Removable Core Double Deflection Register shall be Air-Grilled Supplies Model VRCDDR from extruded aluminium sections, ensuring functional strength and performance that also gives an attractive and aesthetically pleasing appearance. Registers shall incorporate two sets of individually adjustable blades; the front blades may be set either horizontally or at angles either up or down. Rear blades are adjusted in a similar way but only in a vertical plane. Registers shall be a powder coat finish. Registers shall be fitted with accessories where required by Air-Grilled Supplies.
