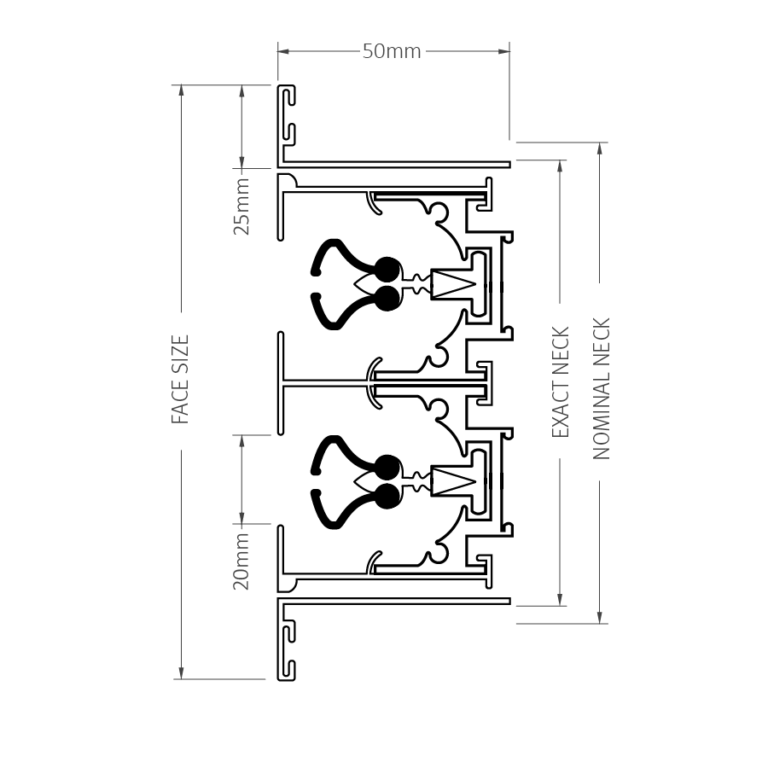

| Product Code | Nom Neck | Slot | Slot Width (mm) | Face Size | Face Size | Pieces/ Carton | |
|---|---|---|---|---|---|---|---|
| VRCLS600 | 600 | 2 | 20 | 638 | 145 | 590 x 97 | 5 |
| VRCLS900 | 900 | 2 | 20 | 938 | 145 | 890 x 97 | 5 |
| VRCLS1000 | 1000 | 2 | 20 | 1038 | 145 | 990 x 97 | 5 |
| VRCLS1200 | 1200 | 2 | 20 | 1238 | 145 | 1190 x 97 | 5 |
| VRCLS1195 | 1155 | 2 | 20 | 1195 | 145 | 1147 x 97 | 5 |
| VRCLS12003 | 1155 | 3 | 20 | 1195 | 185 | 1147 x 137 | 5 |
| *Diffusers are powder coated white as standard* | |||||||
| *All VRCLS come with safety chains* |
PRODUCT INFORMATION
Description

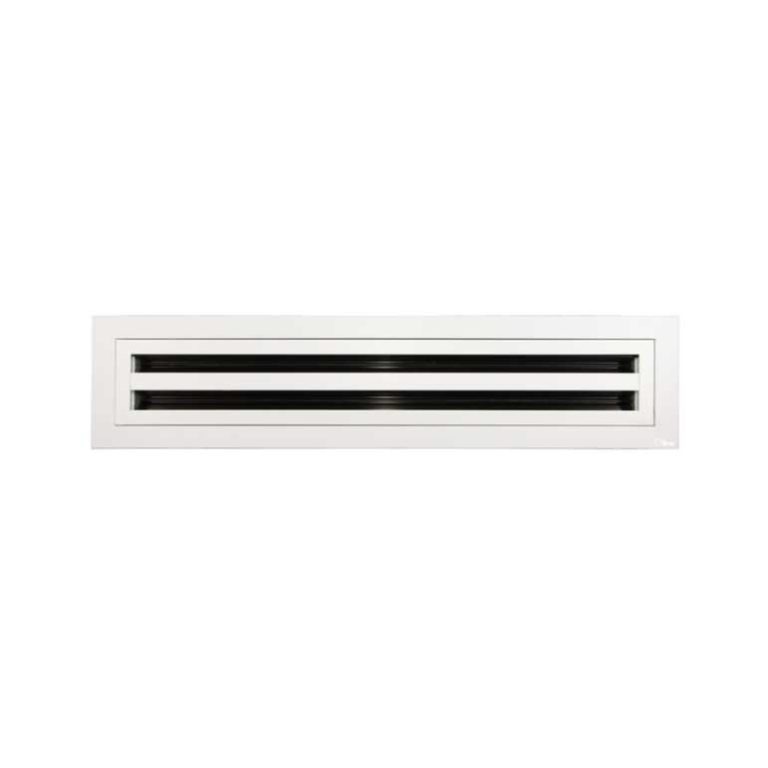

For supply air, fully adjustable removable core linear slot diffuser with unique air pattern control design. The air pattern can be adjusted in situ or factory set to suit design requirements. Suitable for ceiling or wall mounted applications.
Specification
Removable Core Linear Diffusers shall be Air-Grilles Supplies Model VRCLS, constructed from high quality aluminium extrusion in maximum one piece lengths of 1200mm, with mitred ends as standard. Removable Core available in 2 & 3 slots. Diffusers shall be a powder coat finish. Diffusers shall be fitted with accessories where required by Air-Grilles Supplies.
