| Product Code | Nom. Neck Metric |
|---|---|
| VHDFG2016 | 500 x 400 |
| VHDFG2416 | 600 x 400 |
| VHDFG3016 | 750 x 400 |
| VHDFG3616 | 900 x 400 |
PRODUCT INFORMATION

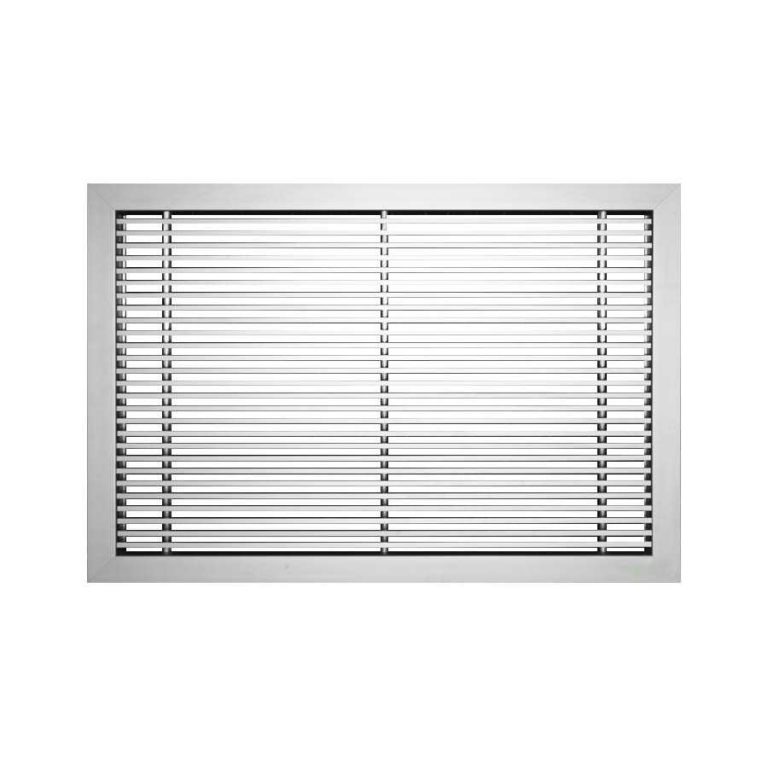

Description
For supply or return air, suitable for floor applications. Floor grilles are only available as fixed core in 0 degree deflection.
Specification
Floor Grilles shall be Air-Grilles Supplies Model FG from extruded aluminium sections. Hairline mitres are mechanically held for maximum strength and durability. Blades shall be spaced at 7mm as standard. Round spacers form the mullions for support between the blades. Angles are welded at the back of the grille for extra strength and support. Grilles shall be natural anodised aluminium finish. Grilles shall be fitted with accessories where required by Air-Grilles Supplies.
