| Product Code | Nom. Neck Metric |
|---|---|
| VMFG124 | 300 x 100 Metal – Floor Grille |
| VMFG1248 | Floor Boot 300x100x200 Straight |
| VMFG124AB | Floor Boot 300x100x150 Angled |
| VMFG124B | 300 x 100 Floor Grille – BIEGE |
| VMFG124SB | Floor Boot 300x100x150 Straight |
| VMFG126B | 300 x 150 Floor Grille – BIEGE |
| VMFG126N | 300 x 150 Floor Grille – NATURAL |
| VMFG146 | 350 x 150 Metal Beige – Floor Grille |
| VMFG146AB | Floor Poly Boot 350x150x200 Angled |
| VMFG146B | 350 x 150 Floor Grille – BIEGE |
| VMFG146N | 350 x 150 Floor Grille – NATURAL |
| VMFG146SB | Floor Poly Boot 350x150x200 Straight |
| VMFG166B | 400 x 150 Floor Grille – BIEGE |
| VMFG166N | 400 x 150 Floor Grille – NATURAL |
| *N = Natural Anodised, B = Beige |
PRODUCT INFORMATION
Description

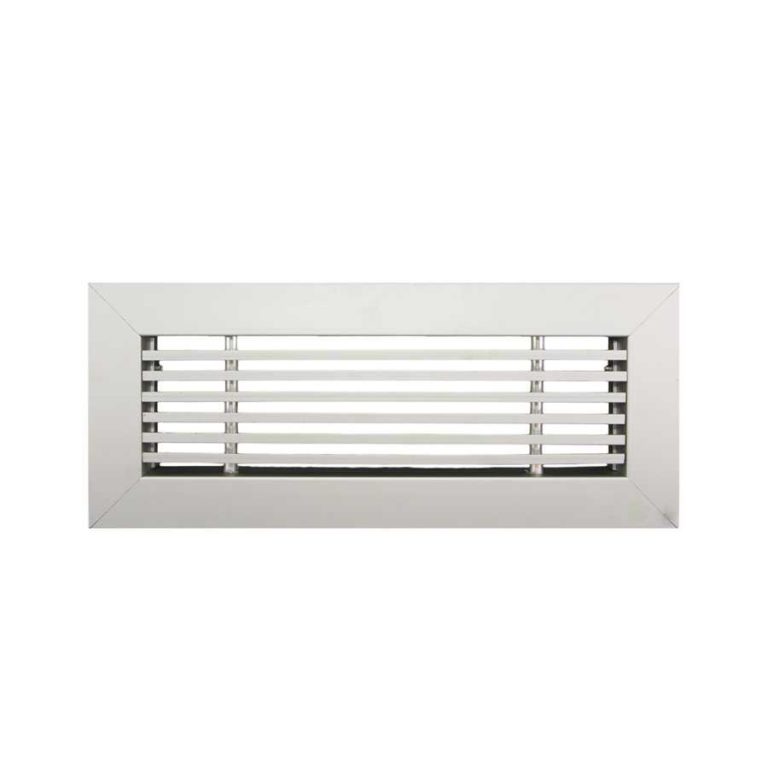

For supply or return air, suitable for floor applications. Floor grilles are only available as fixed core in 0 degree deflection.
Specification

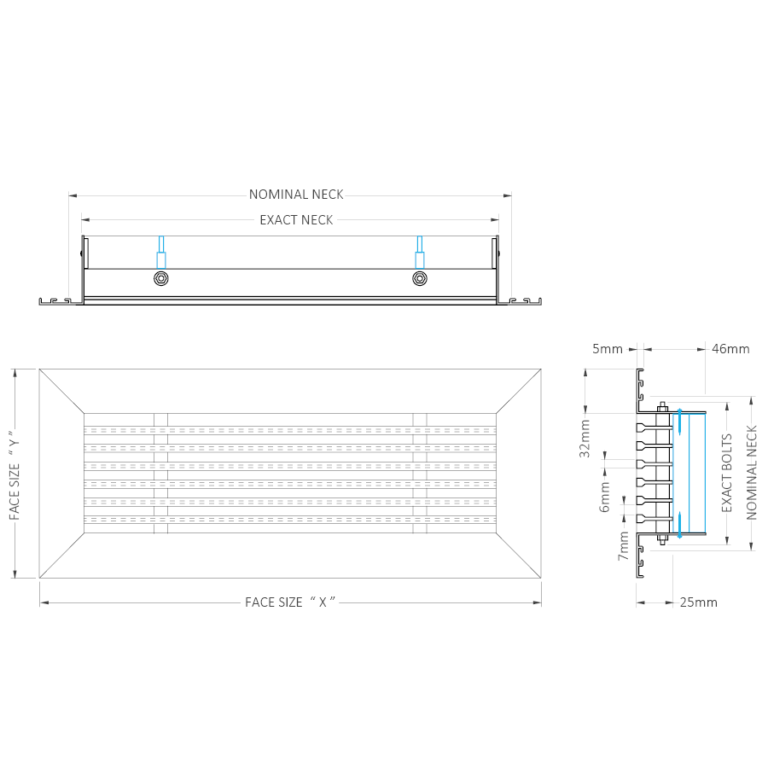

Floor Grilles shall be Air-Grilles Supplies Model VMFG from extruded aluminium sections. Hairline mitres are mechanically held for maximum strength and durability. Blades shall be spaced at 7mm as standard. Round spacers form the mullions for support between the blades. Angles are welded at the back of the grille for extra strength and support. Grilles shall be natural anodised aluminium finish. Grilles shall be fitted with accessories where required by Air-Grilles Supplies.
