| Product Code | Neck Size Metric | Pieces/ Carton |
|---|---|---|
| VBF2W66 | 150 x 150 | 10 |
| VBF2W99 | 225 x 225 | 12 |
| VBF2W1212 | 300 x 300 | 10 |
| VBF2W1515 | 375 x 375 | 10 |
| VBF2W1818 | 450 x 450 | 8 |
| *Grilles are aluminium powder coated white as standard. |
PRODUCT INFORMATION
Description

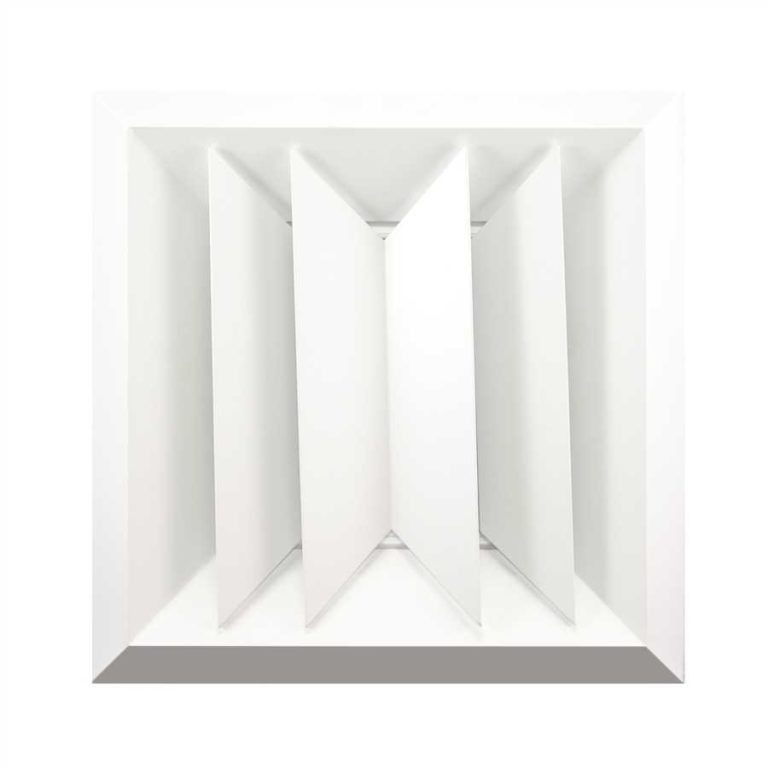

For supply air, multi-core pattern design with quick release core and suitable for heating and cooling. Available in a range of different core patterns and sizes giving total flexibility for all surface mounting applications while providing anti-smudge protection for the ceiling.
Specification
Bevelled Edge Diffuser shall be Air-Grilles Supplies Model VBF multi core pattern design of extruded aluminium construction with quick release core as per Air-Grilles Supplies literature. Diffusers shall be a powder coat finish. Diffusers shall be fitted with accessories where required by Air-Grilles Supplies.
