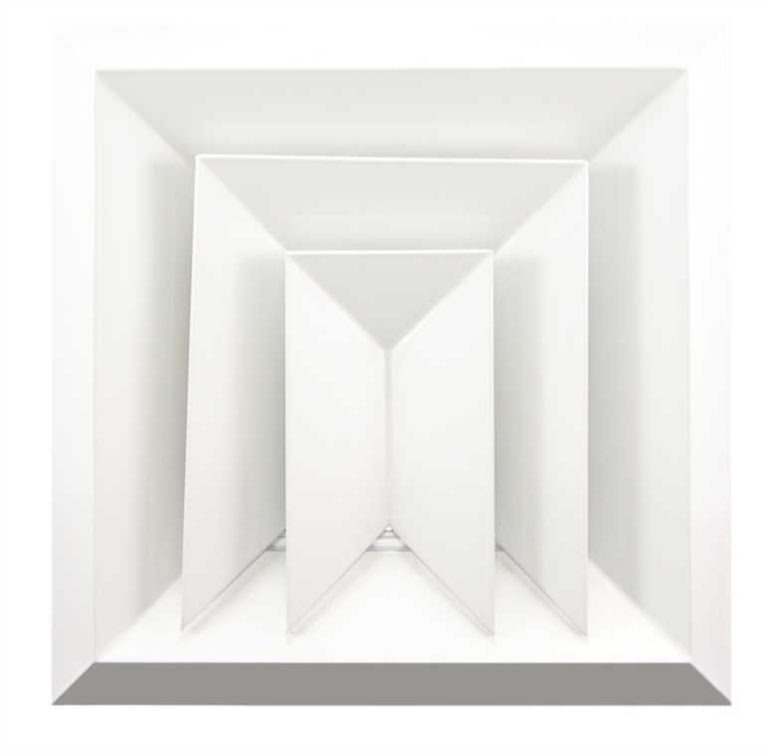

3-Way Bevelled Edge Diffuser

Product CodeNeck Size MetricPieces/ Carton
VBF3W66150 x 15010
VBF3W99225 x 22512
VBF3W1212300 x 30010
VBF3W1515375 x 37510
VBF3W1818450 x 4508
*Grilles are aluminium powder coated white as standard.

PRODUCT INFORMATION

Description
For supply air, multi-core pattern design with quick release core and suitable for heating and cooling. Available in a range of different core patterns and sizes giving total flexibility for all surface mounting applications while providing anti-smudge protection for the ceiling.

Specification
Bevelled Edge Diffuser shall be Air-Grilles Supplies Model VBF multi core pattern design of extruded aluminium construction with quick release core as per Air-Grilles Supplies literature. Diffusers shall be a powder coat finish. Diffusers shall be fitted with accessories where required by Air-Grilles Supplies.
