| Product Code | Nom. Neck Metric | Pieces/ Carton |
|---|---|---|
| VM266 | 150 x 150 | 10 |
| VM299 | 225 x 225 | 10 |
| VM21212 | 300 x 300 | 10 |
| VM21515 | 375 x 375 | 10 |
*Grilles are aluminium powder coated white as standard.
PRODUCT INFORMATION

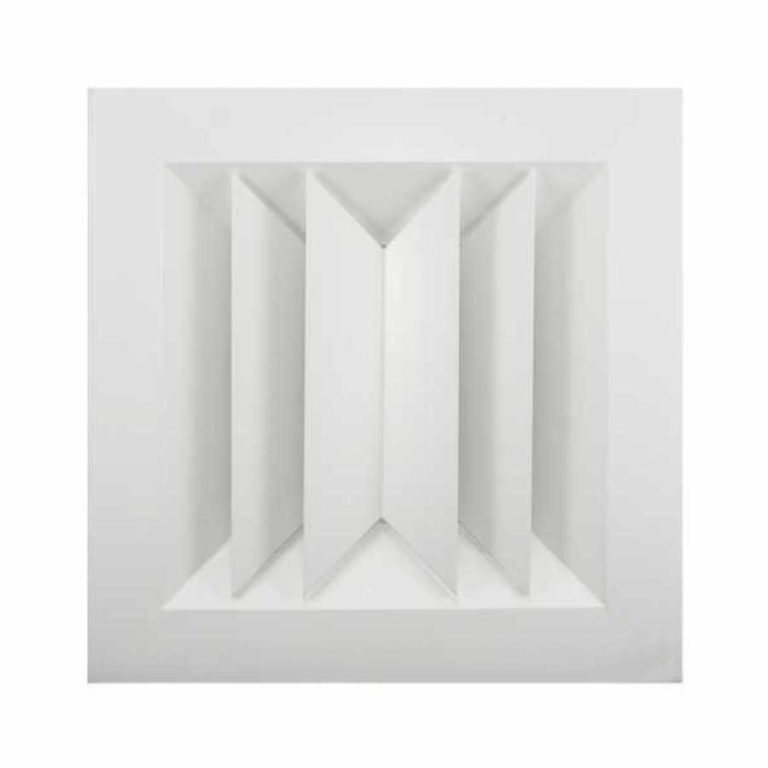

Description
For supply air, suitable for heating and cooling. Available in a range of different core patterns and sizes giving total flexibility for most installations in modern ceiling tile applications. Flanged for surface mounting.
Specification
Opposite Flush Face Diffuser shall be Air-Grilles Supplies Model SD multi core pattern design of extruded aluminium construction with quick release core as per Air-Grilles Supplies literature. Hairline mitred joins mechanically held. Diffusers shall be a powder coat finish. Diffusers shall be fitted with accessories where required by Air-Grilles Supplies.
